Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces

Name: Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HDMI and 1 DP Interfaces
Brand: Helor PC
Price: 407.31 USD

China Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces wholesale

Supply Ability : 50000 pieces/month

Model Number : X58

Installation Method : Supports desktop and wall-mounted installation

Certification : Ce, Rohs, Sgs

Dimensions : 193.9mm*127mm*57.2 mm

MOQ : 1 Piece

Delivery Time : 15 work days

Operating Temperature : -20°C to +60°C

Payment Terms : T/T,D/A,D/P,L/C,Western Union

Price : 407.31usd

Storage Humidity : 10% ~ 90% @30℃, non-condensing

Place of Origin : China

Storage Temperature : -30°C to +70°C

Packaging Details : Color Box

Brand Name : Helor PC

Processor System : Core U5 135U

Contact Now

Intel Core U5 135U Processor Fanless Industrial Mini PC With

2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces

Product Introduction of Mini Industrial PC

This industrial mini PC powered by Intel Core 135U processor delivers balanced and comprehensive hardware configurations, catering to diverse scenarios including

industrial production, corporate office work, multimedia monitoring and outdoor networking. It is equipped with dual Realtek 8111H Gigabit RJ45 Ethernet ports to

deliver outstanding high-speed wired transmission, meeting networking demands such as daily corporate data exchange, server room routing, small local area network

setup and security surveillance data backhaul. Built-in 2*RS232 industrial serial ports enable seamless connection with PLCs, sensors and other industrial peripherals.

For video output, it features 2*HD-MI ports and 1*DP port supporting multi-screen split display, perfectly suited for industrial visualization, multi-station office work and

multi-view monitoring dispatch.

Product Specifications of Mini Industrial PC

Processor System	Core U5 135U
Memory	1*DDR5 SOIMM, up to 64GB
Network	2*GbE RJ45 Realtek 8111H
Storage	1M.2 2280 (NVMe protocol only), 12.5-inch HDD/SSD
Front Interfaces	1Power Button, 4USB3.0, 4USB2.0, 2COM (RS232)
Rear Interfaces	2WiFi Antenna Ports, 1Audio Jack, 1Microphone Jack, 2LAN, 1DP, 2HD-MI, 1*DC Power Jack
Expansion Slots	1M.2 2232 WiF, 1M.2 3042 slot for 3G/4G module, with on-board SIM card slot
Power Input	12V-19V
OS Support	Win10, Win11, Linux
Functions	Supports Watchdog and Diskless Boot

Environmental Adaptability of Mini Industrial PC

This fanless industrial mini PC boasts outstanding environmental adaptability. Engineered for harsh industrial conditions, it features dustproof, moisture-proof, shock

-resistant and wide temperature tolerance properties for long-term stable and reliable operation.

Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces

Application Scenarios of Mini Industrial PC

This RS232-equipped mini PC boasts extensive cross-industry compatibility. It can be widely deployed in smart device terminals, digital signage, vending machines,

industrial sites, entertainment venues, commercial institutions, financial facilities, surveillance systems, medical equipment and more vertical sectors.

Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces

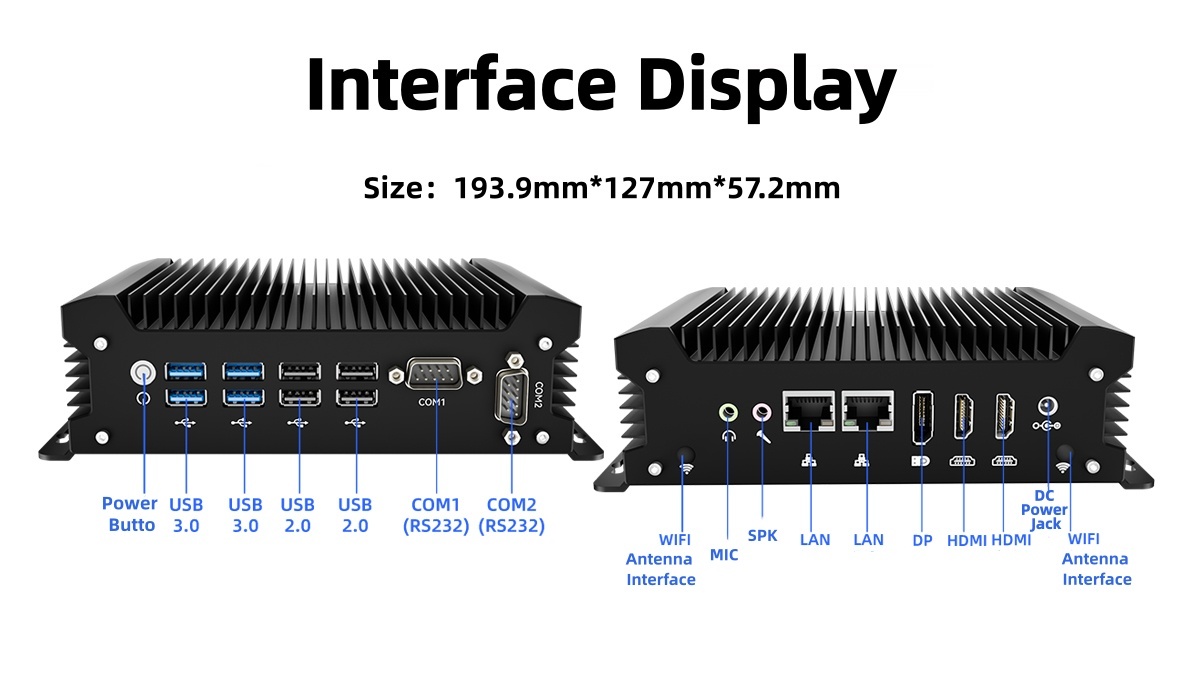

Interface Description of Mini Industrial PC

This industrial mini PC comes with full-range abundant interfaces on front and rear panels: Front Panel: 1*Power Button, 4*USB3.0, 4*USB2.0, 2*COM (RS232);

Rear Panel: 2*WiFi Antenna Ports, 1*Audio Jack, 1*Microphone Jack, 2*LAN, 1*DP, 2*HD-MI, 1*DC Power Jack. It fulfills all-in-one demands for industrial control, office

monitoring, multi-screen operation and peripheral expansion.

Intel Core U5 135U Processor Fanless Industrial Mini PC With 2 LAN Ports 2 RS232 COM Ports 8 USB 2 HD-MI and 1 DP Interfaces

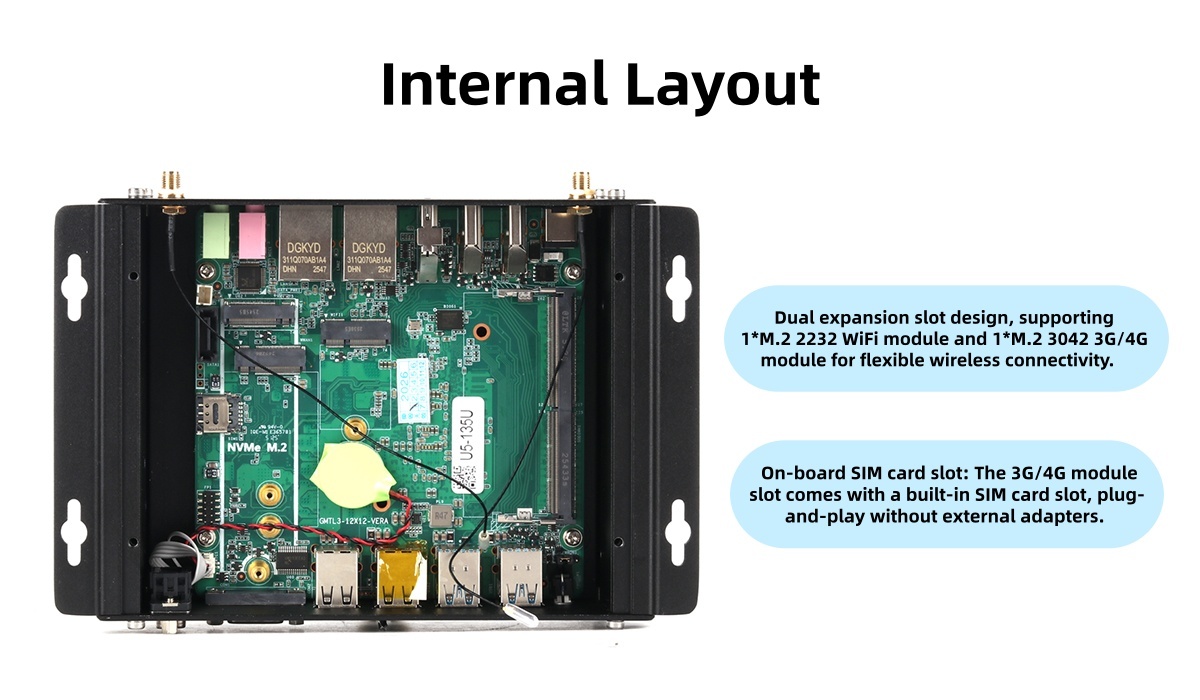

Expandable Functions of Mini Industrial PC

This industrial mini PC adopts dual expansion slot design, supporting 1*M.2 2232 WiFi module and 1*M.2 3042 3G/4G module for flexible wireless connectivity options.

On-board SIM card slot: The 3G/4G module slot integrates a built-in SIM slot, plug-and-play without extra adapters, ideal for mobile network deployment.

Applicable scenarios: Industrial control, security monitoring, edge computing and other equipment requiring dual backup of WiFi and cellular networks.
